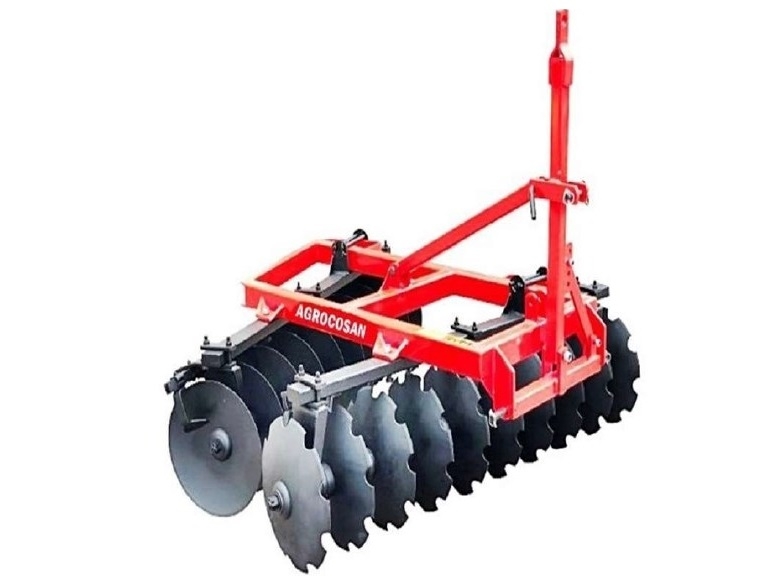

Mounted type offset disc harrow is a machine which is preferred in garden agriculture and small parcels with easy use. Disc direction angles may be adjusted on front and end battery easily. It is used for secondary cultivation, preparation of the seed bed, cultivate spaces between trees in garden agriculture, fighting against the weeds and mixing the fertilizer with the soil. It dissects the scapes and residues left in the field after the harvest and mixes them into the soil. It destroys the clods appeared after operation of tools such as pulley, chisel and cultivator and pulverizes the soil. It is a machine which provides to take organic and inorganic fertilizers under the soil and aeration of the soil which is mixed by this way and water and temperature balance of the soil.
TECHNICAL FEATURES | UNITS | VOD16 | VOD18 | VOD20 | VOD22 | VOD24 |
---|---|---|---|---|---|---|
DISC NUMBER | Pcs | 16 | 18 | 20 | 22 | 24 |
DISC DIAMETER | mm |
460x3,5 510x4 |
460x3,5 510x4 |
460x3,5 510x4 |
460x3,5 510x4 |
460x3,5 510x4 |
WORKING WIDTH | mm | 185 | 185 | 185 | 225 | 248 |
WEIGHT | kg | 450 | 475 | 530 | 600 | 635 |
DISTANCE BETWEEN DISC | mm | 22 | 22 | 22 | 22 | 22 |
NO OF BEDS ON CRANK | Adet/Pes | 4 | 6 | 6 | 6 | 8 |
MIN.POWER | HP | 40-45 | 45-50 | 50 | 50-55 | 50-55 |
