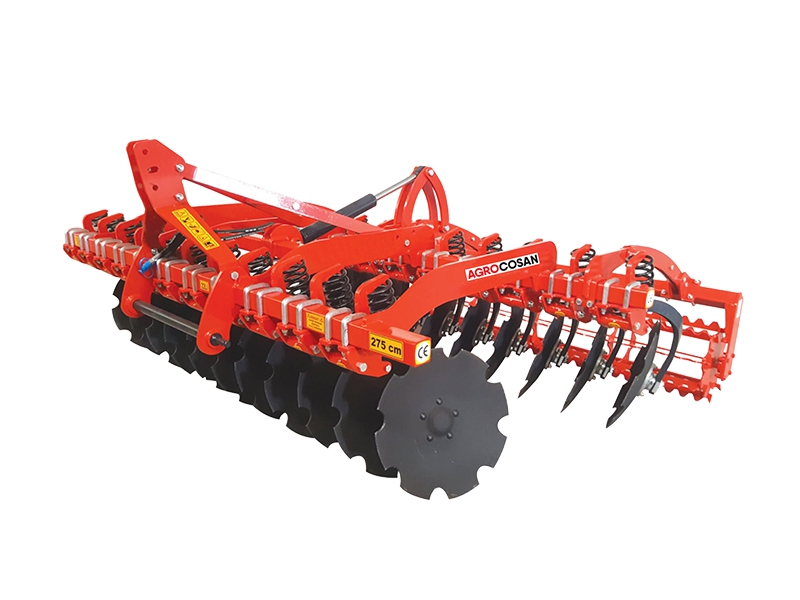

Spring Multi Disc Harrow CDH

  • It has a large usage alternatives on soil processing especially for seed bed preperation and stubble processing.
  • It decreased the product costs by its combined design. The high working capasity brings low costs and low fuel.
  • Notched discs had been tied to frame with rubber roll springs. Adding the soil and the plant parts to the soil by crumbling can be done in a high performance by this structure.
  • It is an ideal machine for minimum soil processing that becomes important in the last years.
  • It is possible with this machine to mix by crumbling plant parts in the best way and to become useful faster for the plant, consequently to bring in biological balance of the soil again.
Download Catalog
Spring Multi Disc Harrow CDH
Model No. of Disc(pcs) Weight(kg) Working width(mm) Power(hp) Working depth(mm))
CDH16 16 930 2000 55-65 250
CDH18 18 1030 2250 65-75 250
CDH20 20 1120 2500 75-85 250
CDH22 22 1270 2750 85-95 250
CDH24 24 1360 3000 95-110 250
CDH26 26 1460 3250 110-120 250
CDH28 28 1550 3500 120-130 250
CDH30 30 1640 3750 130-140 250
CDH32 32 1730 4000 140-150 250
CDH34 34 1870 4250 150-170 250
With Roller
CDH16-R 16 1200 2000 55-65 250
CDH18-R 18 1320 2250 65-75 250
CDH20-R 20 1410 2500 75-85 250
CDH22-R 22 1600 2750 85-95 250
CDH24-R 24 1710 3000 95-110 250
CDH26-R 26 1805 3250 110-120 250
CDH28-R 28 1920 3500 120-130 250
CDH30-R 30 2025 3750 130-140 250
CDH32-R 32 2120 4000 140-150 250
CDH34-R 34 2235 4250 150-170 250
