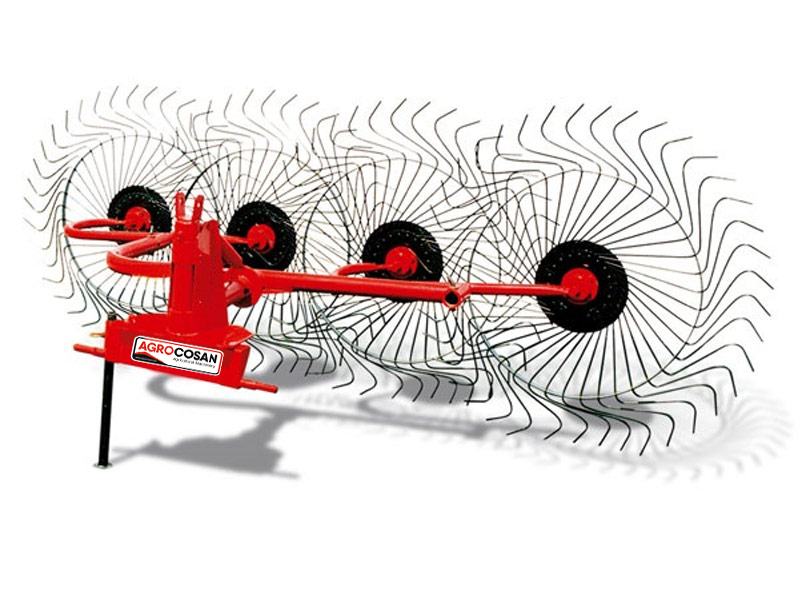

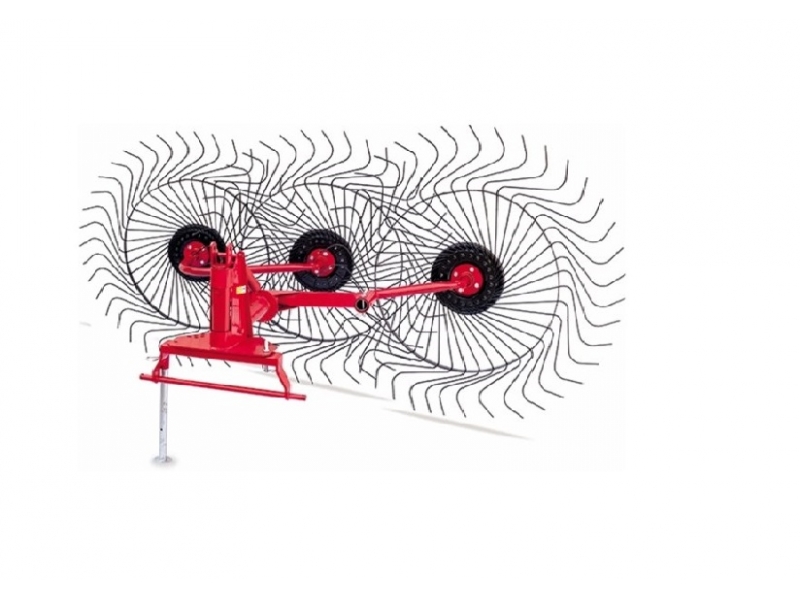

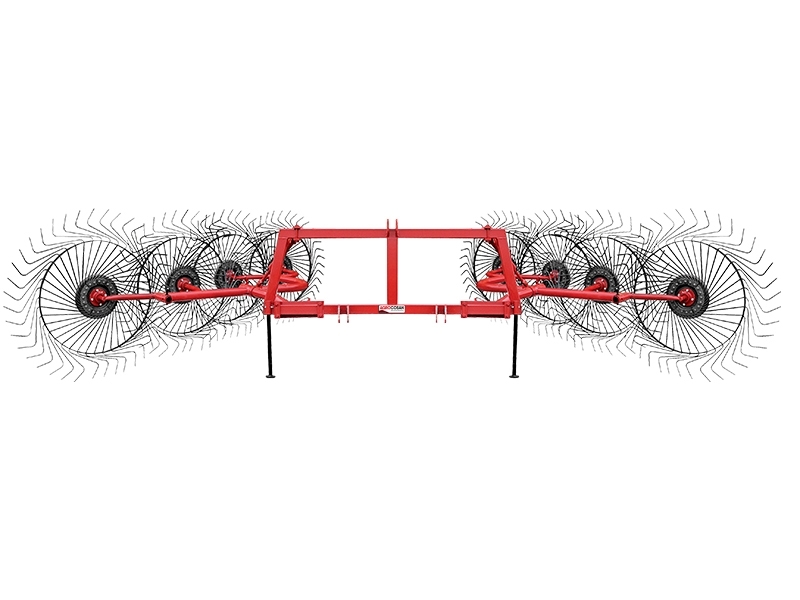

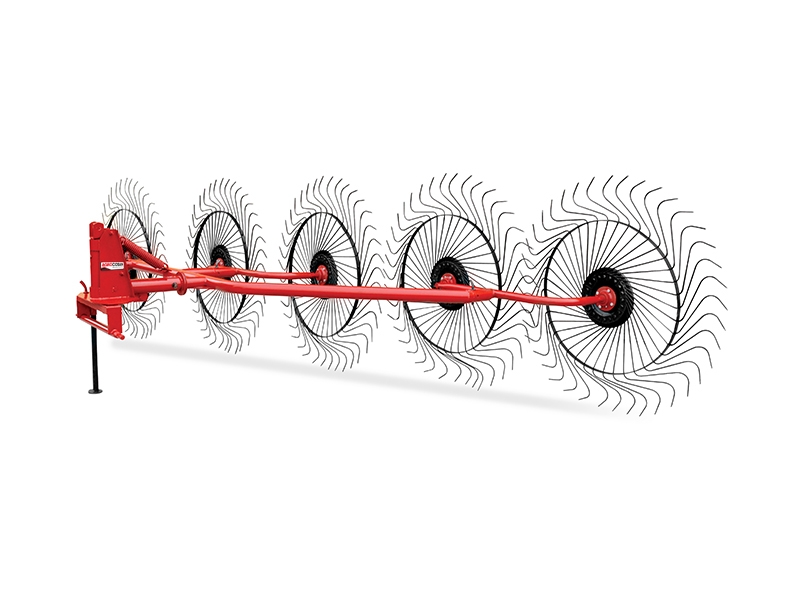

Mounted Hay Rake CHR

  • Hay Rake is easily adaptable to each type of tractor by its three point linkage system. It provides a lot of time and labor saving.
  • It offers an excellent performance on each kind of fields and it helps farmers to make work easier than previous.
  • Hay Rake is used for separating the green herb over the field to ventilate them to dry in a short time.
  • It can be used to collect the cut plant stalks together to put this in a standard row and by this way the plant stalks returns to te economy and obtains extra gain.
Mounted Hay Rake CHR
Mounted Hay Rake CHR
  Units CHR-4 CHR-5 CHR-8 CHR-10
Drum Pcs pcs 4 5 8 10
Spring Pcs pcs 160 200 320 400
Total Length cm 400 530 670 760
Total Width cm 210 230 300 410
Working Width cm 220-260 330-350 520-610 520-700
Weight kg 175 215 485 580
Tractor Power hp 30 30 45 45
