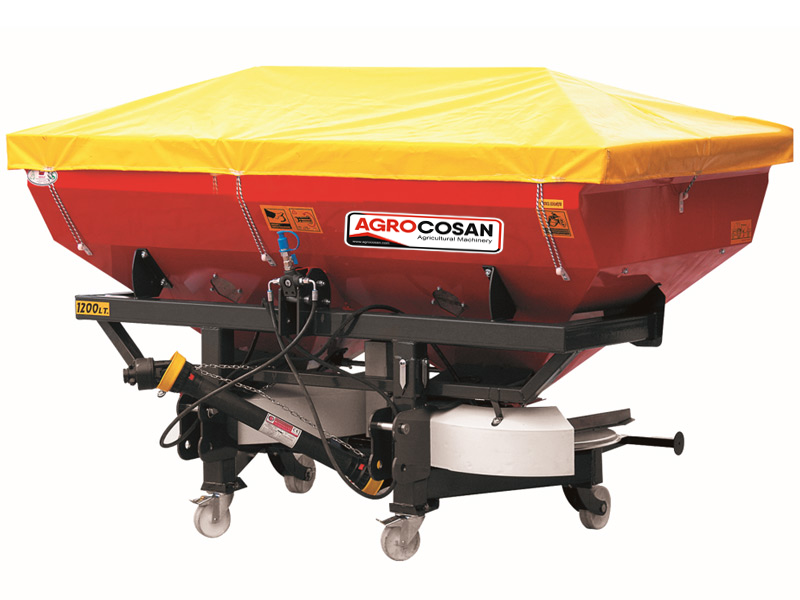

Fertilizer spreaders mounted to the Tractors through three point linkage system. It is powered by throughout a rod by tractor PTO and linked up by spreader discs and smashers in the tank. With the action of the output rods the discs turns and the fertilizer are spreading by the discs. Spreading degree can be easily adjusted by means of the mechanical lever and hydraulic lift.
Units | TECNICIAL SPECIFICATIONS | |||
---|---|---|---|---|
CFN-900 | CFN-1200 | CFN-1500 | ||
Number of Discy | pcs | 2 | 2 | 2 |
Hopper Capacity | lt. | 970 | 1280 | 1550 |
Total Width | cm | 213 | 238 | 238 |
Working Width | m | 10-36 | 10-36 | 10-36 |
Total Length | cm | 140 | 151 | 151 |
Total Height | cm | 130 | 142 | 160 |
P.T.O. | r/m | 540 | 540 | 540 |
Weight | kg | 360 | 395 | 408 |
Hydraulic Control | standart | standart | standart | |
Stainless Steel Disc | standart | standart | standart | |
Stainless Steel Wing | standart | standart | standart |
