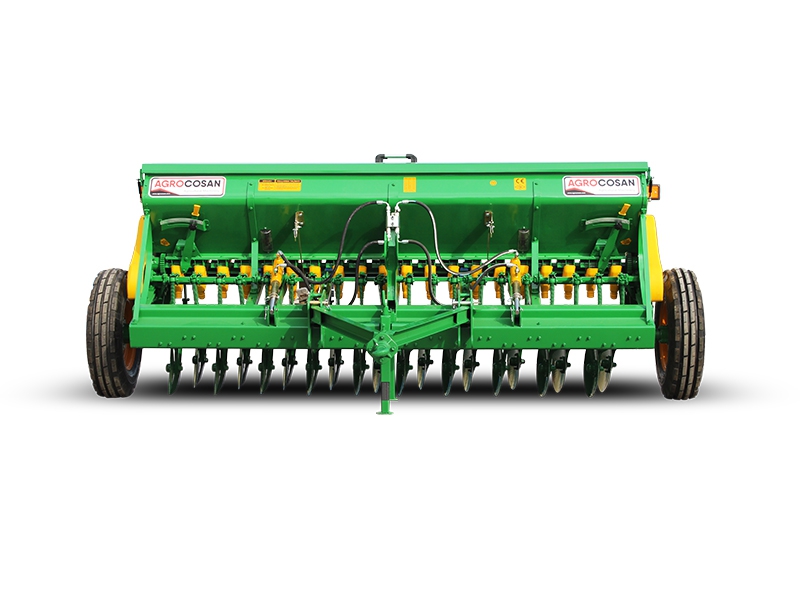

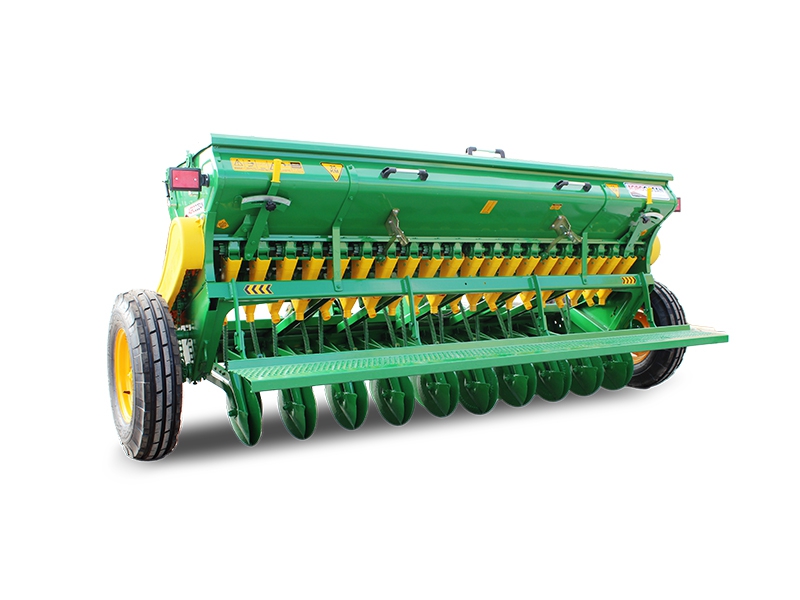

Combined Grain Seed Drill CGS-S

  • This is an ideal machine for sowing; wheat, barley, oat, lentil, chickpea, bean etc. For grain and pulses seeds.
  • Cereal Seed Drill Machine that provides changeover from sowing to destination position are manufactured as 12, 14, 16, 18, 20, 22, 24, 26, 28 and 32 discs, optional 40 disc.
  • Seeding distance: standard 14 cm, and optional: 12.5 cm and 13 cm Combined seed drill is a sowing machine that transfers the seed, pulses, feed grains and fertilizer to the seed bed opened by the discs continuously, thanks to the helical sheaves, with the requested quantity and depth with the help of levelling system. Thanks to its structure, the hopper prevents seed and fertilizer to accumulate and therefore, an efficient seeding is performed by protecting bearing with the dusting system using dry system double bearings on the discs and by automatic or hydraulic disc penetration setting, which is performed optionally, that allows easy planting of the seed or fertilizer into the requested depth and it is easy to clean thanks to its discharging levers on each hopper.
  • Besides these standard features of our combined grain seeder, both three-point hitch and arrow system are its standard specifications. Thanks to these features, it is suitable for planting, seeding and operation with a tractor on all types of soil conditions.



Download Catalog
Combined Grain Seed Drill CGS-S
Combined Grain Seed Drill CGS-S
  Units CGS-S14
CGS-S16
CGS-S18
CGS-S20
CGS-S22
CGS-S24
CGS-S26
CGS-S28
CGS-S30
CGS-S32
Seeding Distance cm 14 14 14 14 14 14 14 14 14 14
Number of Discs Pcs 14 16 18 20 22 24 26 28 30 32
Total Width cm 274 302 338 366 394 422 450 478 506 534
Working Width cm 182 210 238 266 294 322 350 378 406 434
Length cm 133
Hopper Height cm 132 136
Total Length cm 233
Seed Box Capacity kg 305 350 390 430 470 510 550 590 630 670
Fertilizer Box Capacity lt 280 320 360 395 430 465 505 540 580 615
Seed Capacity(Wheat) kg 235 265 300 325 355 385 415 450 480 510
Fertilizer Capacity kg 275 310 350 385 385 455 495 530 565 600
Tire Dimensions inch 600 x 16 750 x 16
Weight kg 900 950 1000 1080 1150 1220 1290 1360 1430 1500
Tractor Power hp 40-45 45-50 50-55 55-60 60-65 65-70 70-75 75-80 80-85 85-90
