Trailers Single Axle CTS - Double Axle CTD

Trailer is one of the equipments that must be included each agricultural establishments and farmers. It is commonly used for the transport of goods and materials in farm, field and gardens. Our modern trailers are intended for transport of various materials, in particular agricultural produce where precise tightness is required. Our innovative trailers are marked by: well-equipped standard versions, high loading capacity of box-bodies, long life using period. Some standard features like light system, tool box, chock, water tank, color option are available.

Trailers  Single Axle  CTS  -  Double Axle CTD
Trailers  Single Axle  CTS  -  Double Axle CTD
Technical Features Units Models
Capacity ton CTS1 CTS3 CTS4 CTS5
Axle Type - Single Single Single Single
Tipping Type - rear rear rear rear
Length cm 230 300 330 350
Width cm 130 190 200 210
Height cm 30+20 40+25 45+30 45+40
Tyre Size - 185/70 750/16 900/16 900/16
Weight kg 690 1000 1200 1400
Tipping Angle   42° 42° 42° 42°
Ground Clearance cm 100 100 100 100



Technical Features Units Models
Capacity ton CTD6 CTD8 CTD10
Axle Type - Double Double Double
Tipping Type - rear rear rear
Length cm 450 450 480
Width cm 200 210 210
Height cm 60+40 60+50 60+60
Tyre Size - 900/16 12.5/80 12.5/80
Weight kg 2500 2700 2900
Tipping Angle   42° 42° 42°
Ground Clearance cm 110 110 110

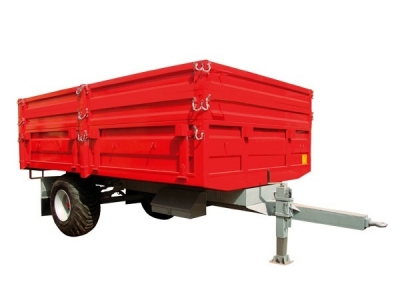

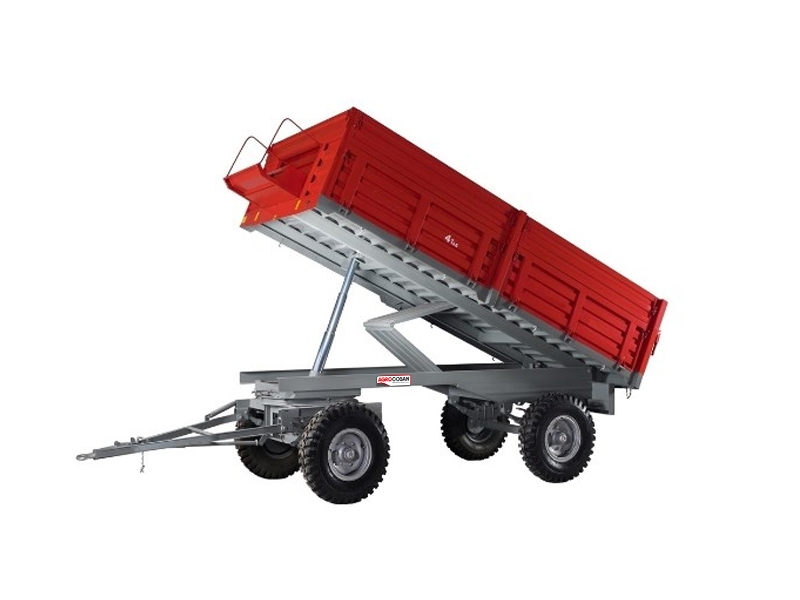

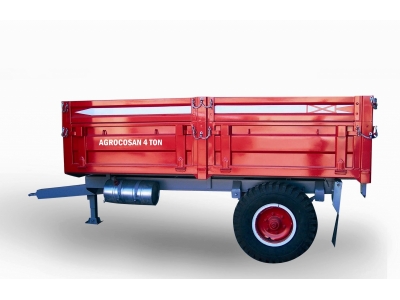

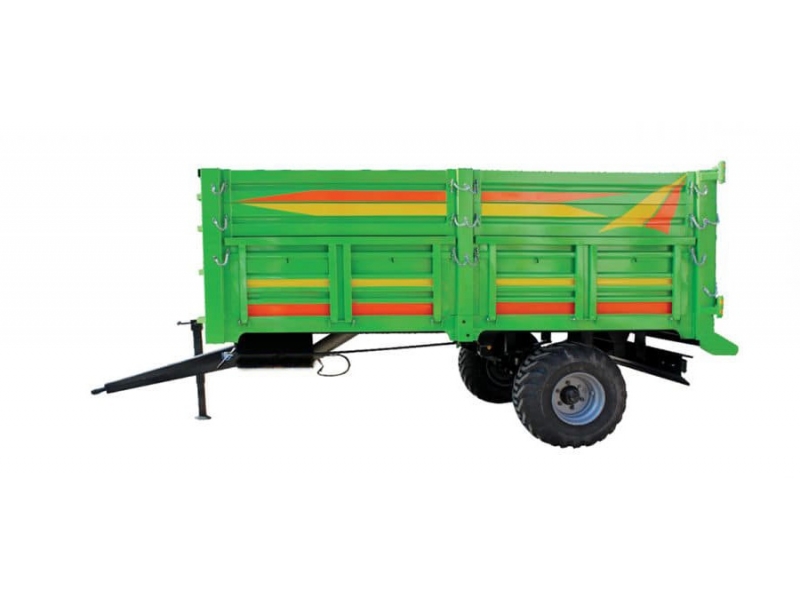

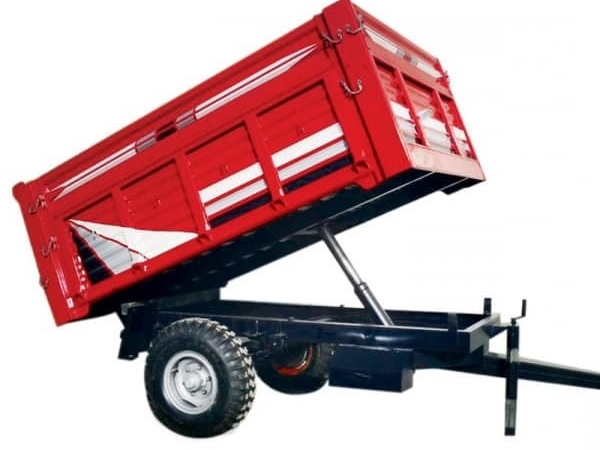

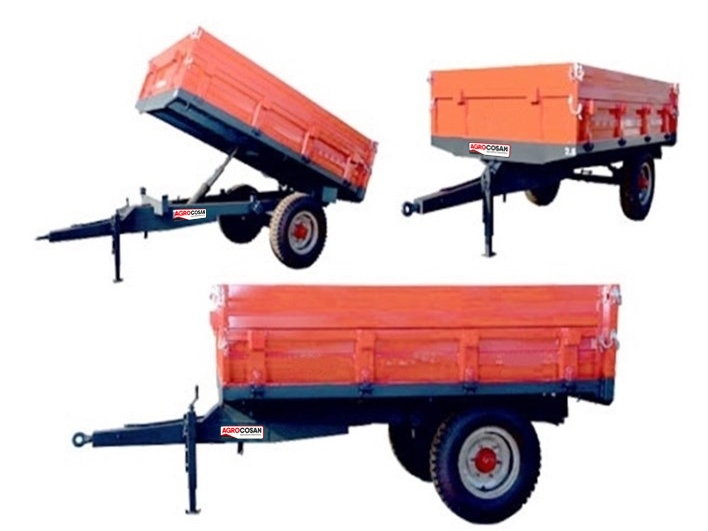

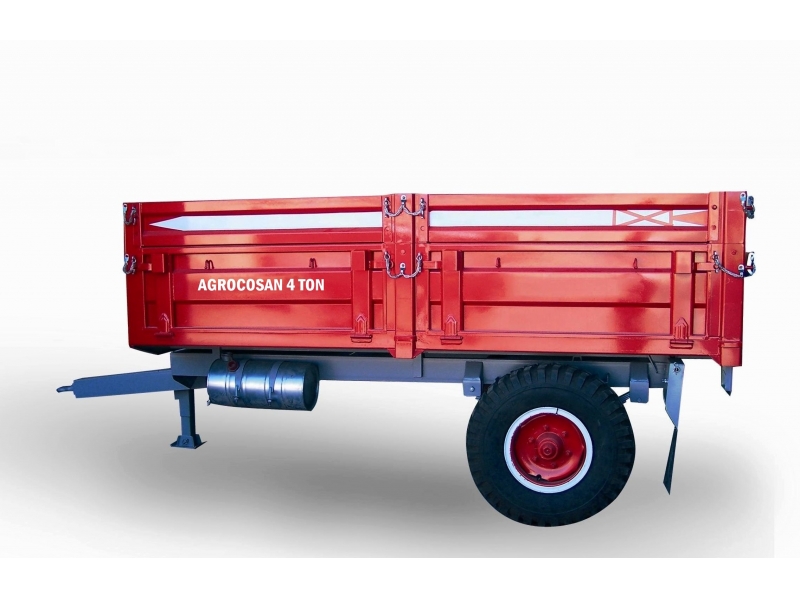

Photo Gallery
