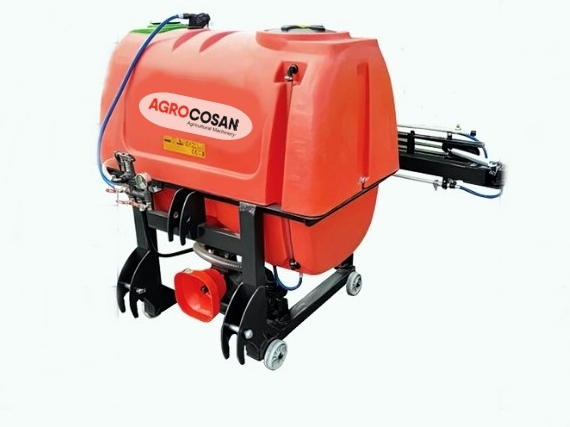

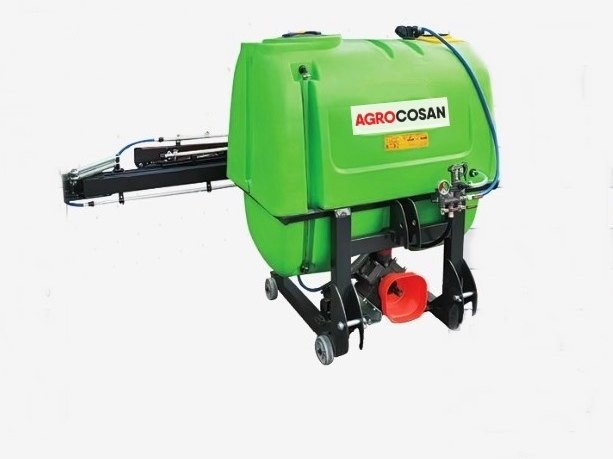

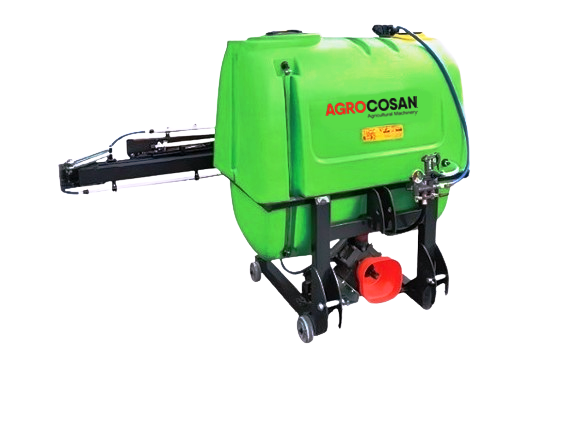

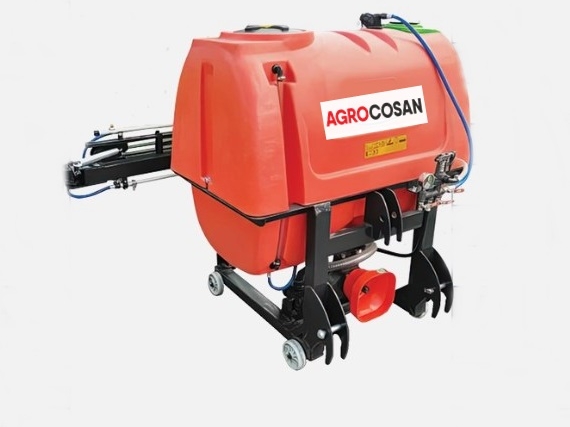

Mounted Field Sprayer Standard MS
- Tractor mounted sprayers by PTO via shaft developed to meet the different requirements of plant protection treatments. Sprayers extremely versatile and suitable, according to the applications, to operate in open-field cultivations, sprayer and distribute herbicides among the plant rows the availability of several mechanical and hydraulic spraying booms together with different equipments and option allow our sprayers to suit the requirement of the single users in the specific treatments.
- Easily mountable on 3-pt of tractors
- Level indicator on the tank
- Polythene tanks
- Easily cleanable water filter
- Booms are removable for loading and transportation
- Easily adjustable and user friendly
- High efficiency
- Pressure regulation
- Clean water tank
| Type | MS 200 | MS 400 | MS 500 | MS 600 | MS 800 | MS 1000 |
|---|---|---|---|---|---|---|
| Pump Model (I/min) | C71 | C71 | C71 | C71 | C71 | C71 |
| Control Panel | Latch | Latch | Latch | Latch | Latch | Latch |
| Boom Length (m) | 10 | 12 | 10 | 12 | 12 | 12 |
| Noozle Type | Brass-Plastic | Brass-Plastic | Brass-Plastic | Brass-Plastic | Brass-Plastic | Brass-Plastic |
| Noozle Piece | 20 | 24 | 20 | 24 | 24 | 24 |
| Width (cm) | 70 | 77 | 77 | 77 | 80 | 80 |
| Lenght (cm) | 110 | 115 | 130 | 140 | 158 | 165 |
| Height (cm) | 134 | 134 | 140 | 140 | 153 | 170 |
| Bum Height (cm) | Manuel | Manuel | Manuel | Manuel | Manuel | Manuel |
| Required Power (BG) | 40 | 40 | 40 | 40 | 40 | 40 |
| Working Transfer | 540 | 540 | 540 | 540 | 540 | 540 |
| Weight (kg) | 135 | 145 | 145 | 155 | 202 | 210 |
